Set of 3 Nd:YAG Resonant Cavity Mirrors: HR + OC1 (54%) + OC2 (80%) - Ø12mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description
Comprehensive set of 3 high-quality optical mirrors designed for Nd:YAG laser resonators (1064 nm).
- 1x HR: R > 99.5% @ 1064nm

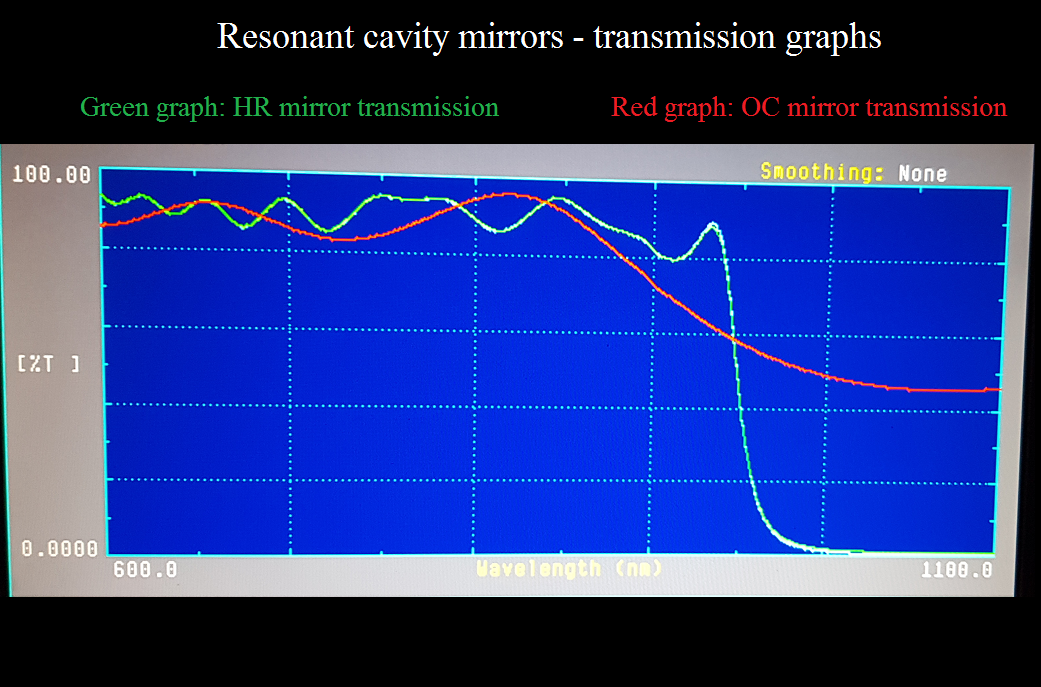

- 1x OC1: R ~ 54% @ 1064nm

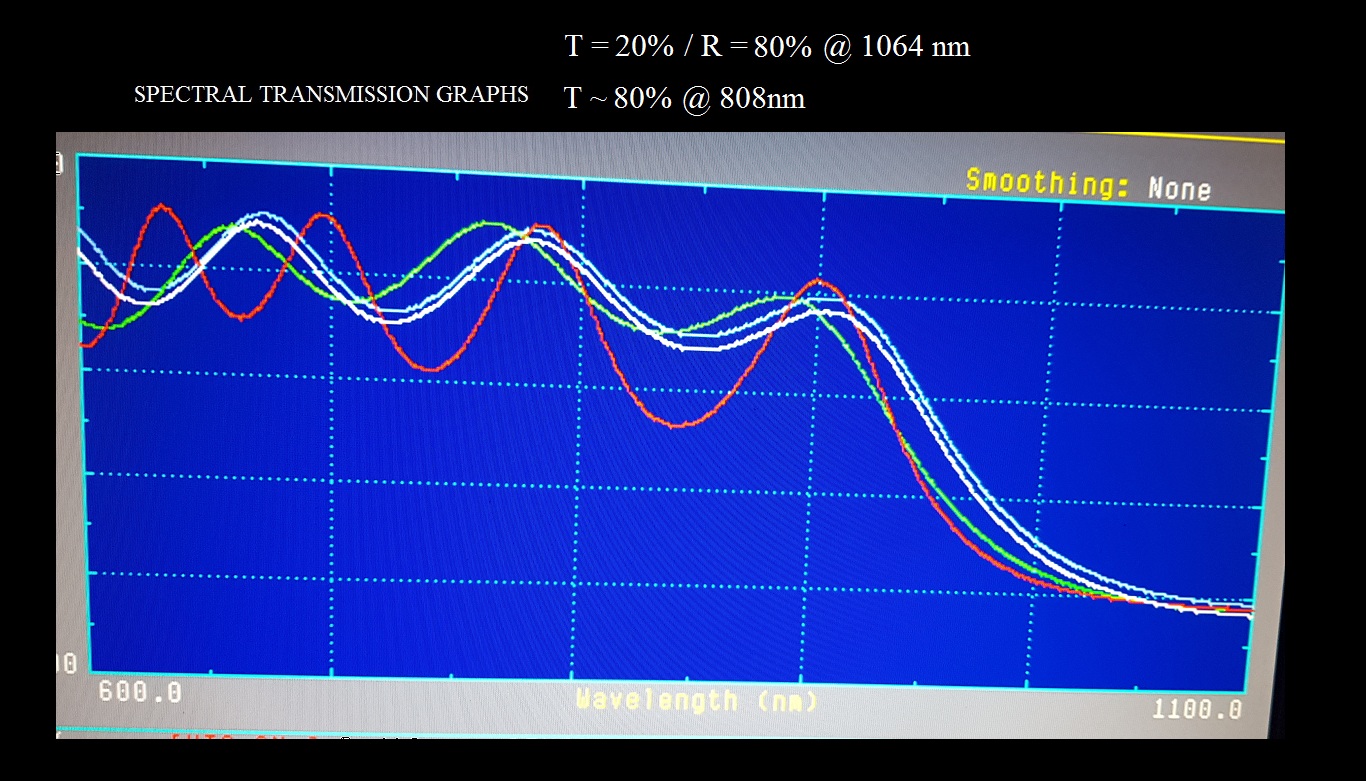

- 1x OC2: R ~ 80% @ 1064nm
Technical Specifications
| Product Code | 2401-set3 |
| Wavelength | 1064 nm |
| Diameter | 12 mm |
| HR Reflectivity | R > 99.5% |
| OC1 Reflectivity | ~ 54% (±2%) |
| OC2 Reflectivity | ~ 80% (±2%) |
| Transmission @ 808nm | OC1: ~95% | OC2: ~80% |
| Coating Type | Dielectric PVD (Hard coatings) |
