Ruby Laser Output Coupler - R ≈ 85% @694nm, Φ25×8mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description

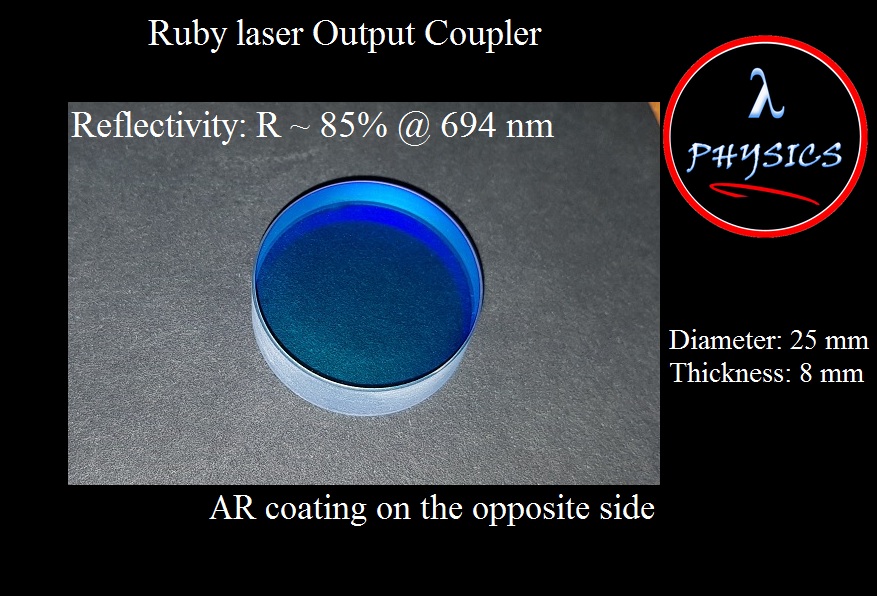

High-quality Output Coupler (OC) mirror designed for Ruby Laser (694 nm) systems. This specific reflectivity is ideal for the Pulsed Free-running mode.
The mirror is built on a precision Schott BK7 optical glass substrate. To ensure maximum efficiency and prevent internal interference, a high-performance Antireflection (AR) coating is applied to the second (opposite) face.
Technical Specifications
| Wavelength | 694 nm |
| Reflectivity | R ~ 85% (±2%) @ 694 nm |
| Transmission | T ~ 15% (±2%) @ 694 nm |
| AR Coating | Yes (on 2nd face) |
| Substrate | BK7 - Schott optical glass |
| Diameter | 25 mm |
| Thickness | 8 mm |
| Geometry | Flat / Plano |
| Coating Technology | Dielectric PVD |
