Ruby Laser Resonant Cavity Mirrors HR [R~99.9% - Φ25×5mm] + OC [R~85% - Φ25×8mm]
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description
Matched pair of high-reflectivity dielectric mirrors for Ruby Laser (694 nm) cavities. Optimized for high-energy pulsed operation in free-running mode.
The set includes one HR mirror and one OC mirror, both on high-quality BK7 substrates. The dielectric coatings are designed to withstand high peak powers and minimize losses. The HR mirror's second face is optically polished.
Technical Specifications
| Wavelength | 694 nm |
| Substrates | BK7 - Schott optical glass |

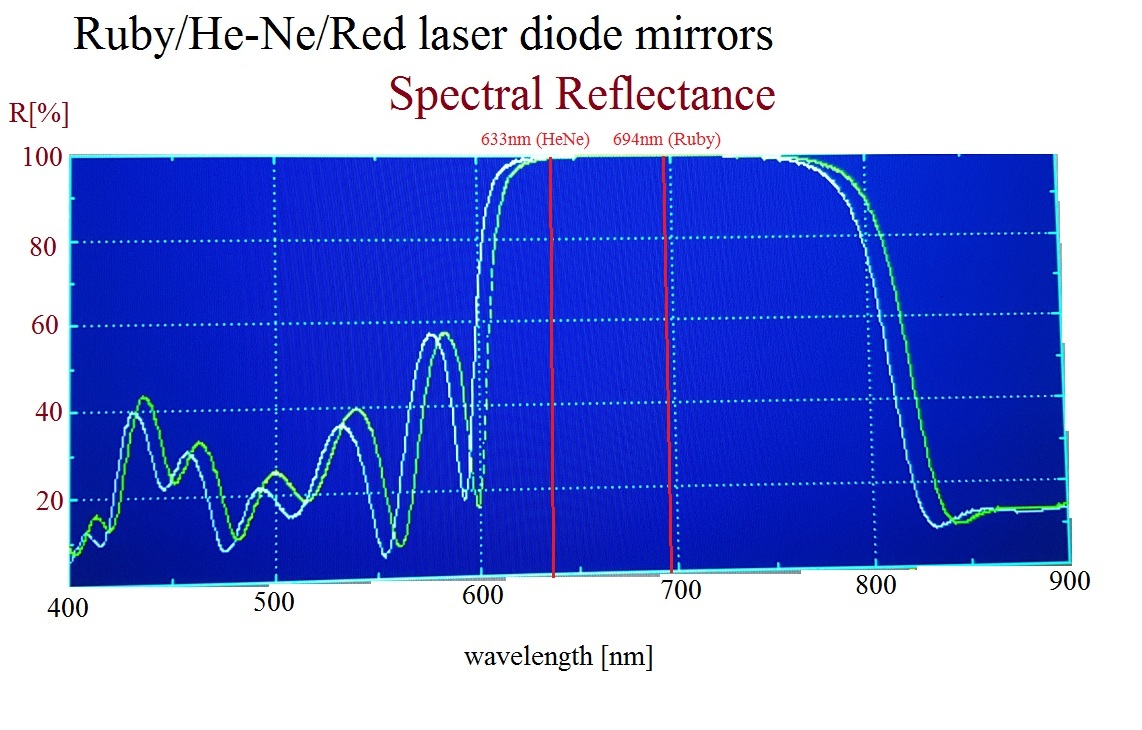

| HR Reflectivity | R ~ 99.9% @ 694 nm |

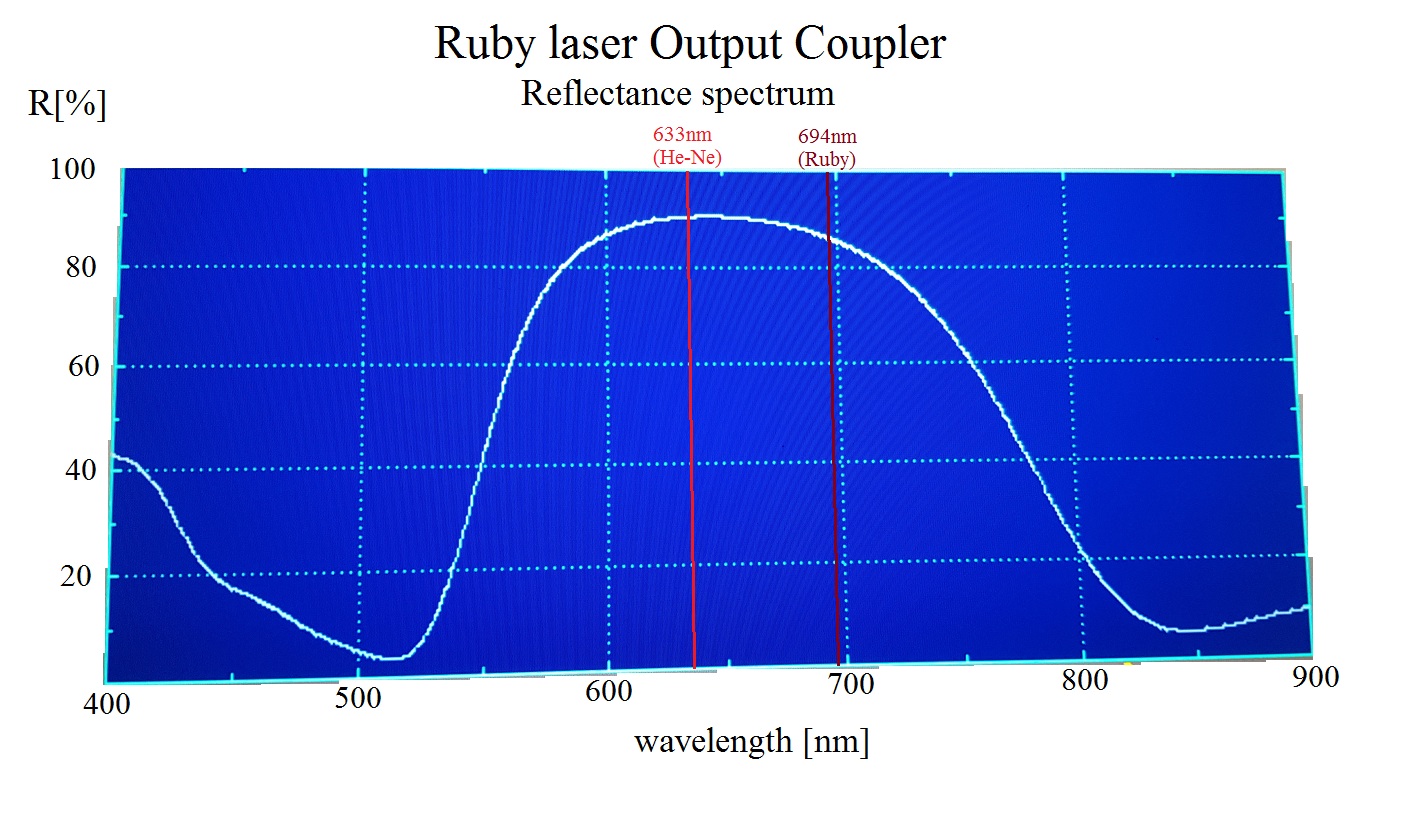

| OC Reflectivity | R ~ 85% (±2%) @ 694 nm |
| Diameter | 25 mm (Both mirrors) |
| Thickness | HR: 5 mm | OC: 8 mm |
| Geometry | Flat / Plano |
