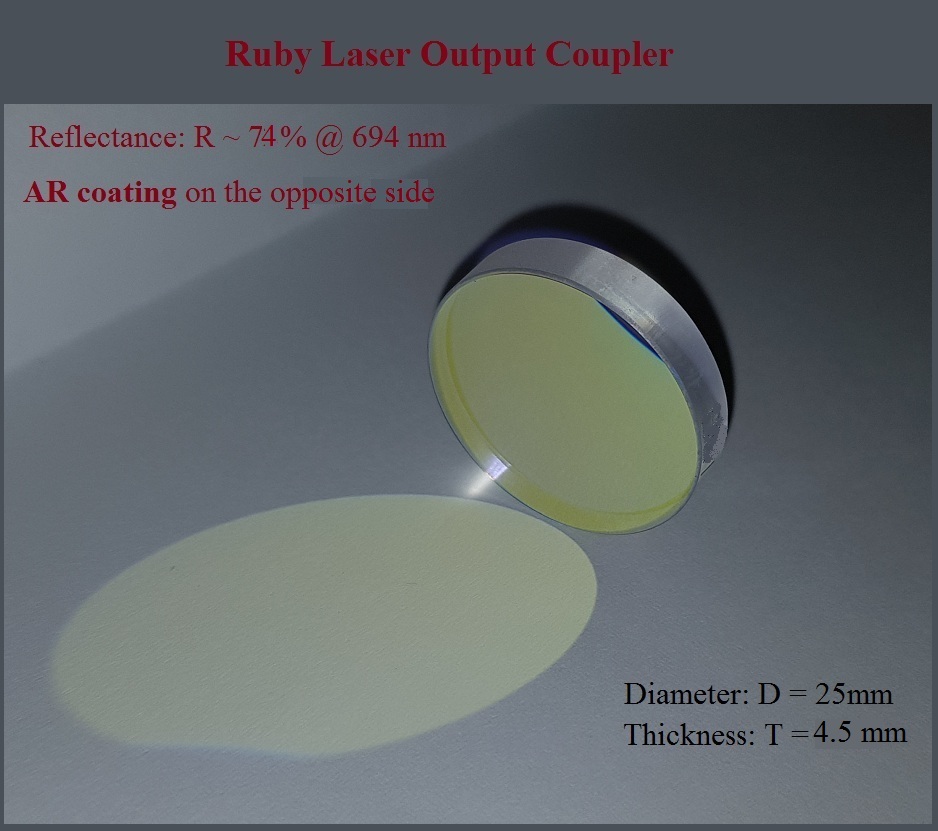

Ruby Laser Output Coupler R ≈ 74% @694nm, Φ25×4.5mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description
High-precision Output Coupler (OC) mirror specifically designed for Ruby Laser Resonant Cavities (694 nm).
This mirror features a partial reflectivity of approximately 74%, making it ideal for pulsed laser operation. The rear surface is treated with a high-performance Anti-Reflection (AR) coating to minimize losses and ghost reflections.
Typical Applications:
- Output Coupler in pulsed Ruby laser resonators
- Fabry-Perot etalon setups
- Beam steering & beam splitting for He-Ne and red diode lasers
- Precision optical research setups
Technical Specifications

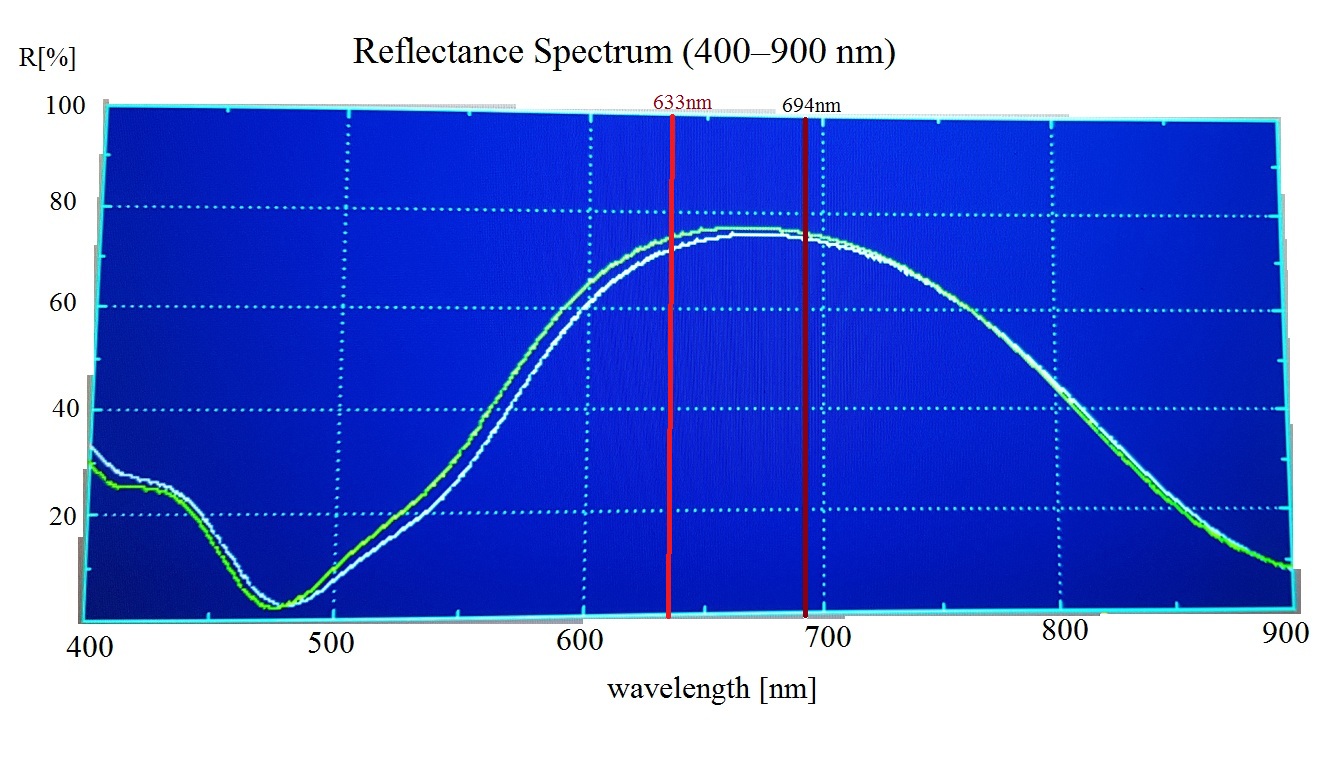

| Reflectivity | R ~ 74% (±2%) @ 694 nm |
| Transmission | T ~ 26% (±2%) @ 694 nm |
| Diameter | 25 mm |
| Thickness | 4.5 mm |
| Substrate | BK7 - Schott Optical Glass |
| Geometry | Flat |
| Coatings | Dielectric R~74% (Side 1) / AR (Side 2) |
