Nd:YAG Laser Mirrors Pair: HR + OC (52%) - Ø12mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes or bank transfers, please contact us via email.
For custom quotes or bank transfers, please contact us via email.
Product Description
This high-quality pair of resonant cavity mirrors is specifically designed for Nd:YAG laser systems operating at 1064 nm.

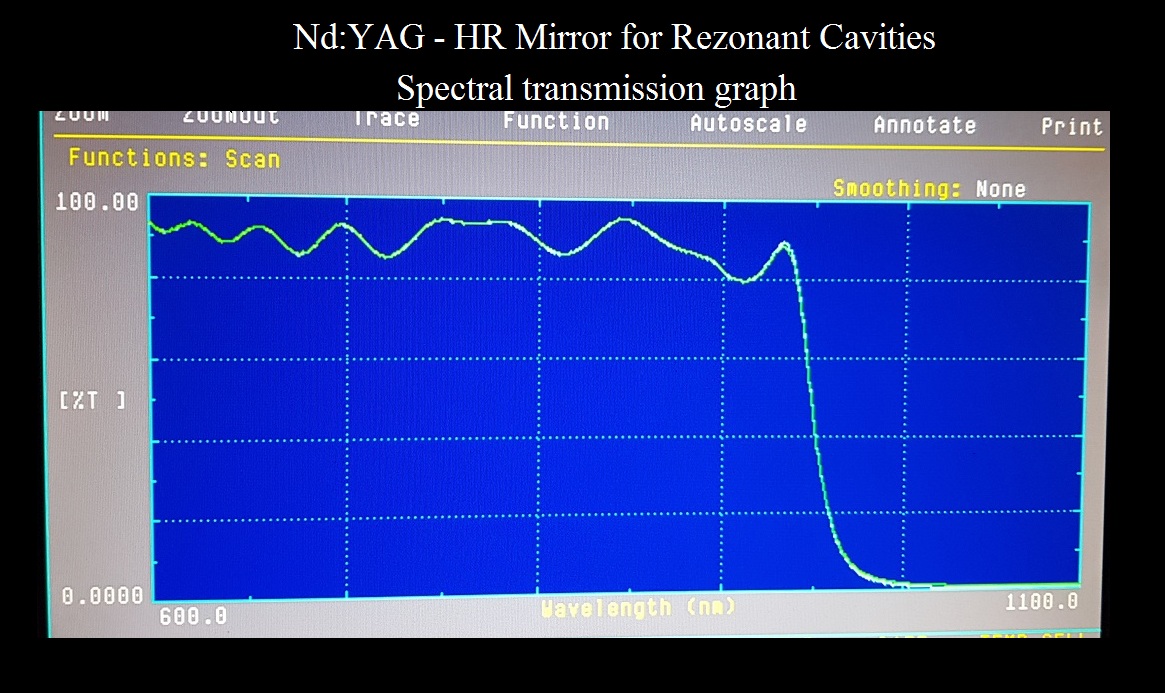

- HR Mirror: High reflectivity (> 99.5%) for maximum cavity gain.

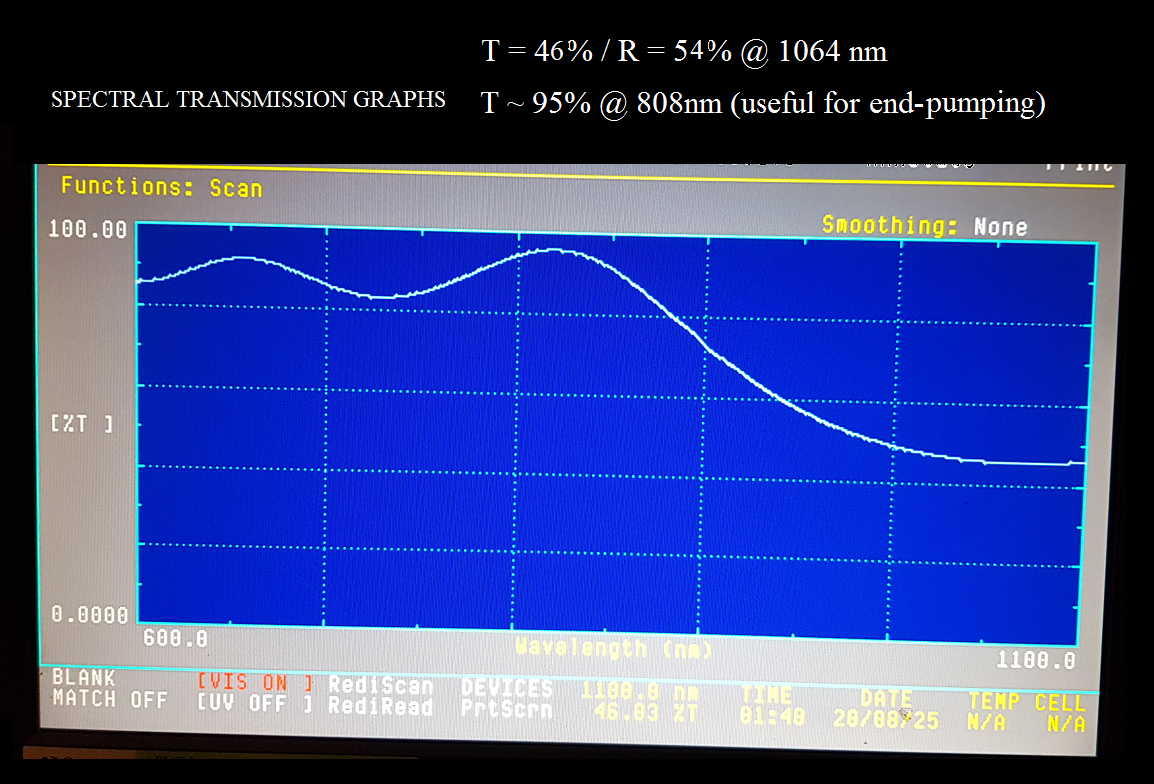

- Output Coupler (OC): Optimized reflectivity of 52% with AR coating on the second face.
- Substrate Size: 12 mm diameter, ideal for compact or experimental laser setups.
- Advanced Coatings: Manufactured using PVD (Electron Beam) dielectric interference technology.
Ensures high thermal stability and a high damage threshold for pulsed operations.
Technical Specifications
| Product Code | 2400N-12 |
| Wavelength | 1064 nm |
| Diameter | 12 mm |
| HR Reflectivity | > 99.5% |
| OC Reflectivity | 52% + AR coating |
| Coating Type | Dielectric interference |
| Technology | PVD (Electron Beam) |
| Origin | Manufactured in EU |
