HR IR Mirror (750-900nm) @45° & He-Ne Laser Beam Splitter (R/T=40/60) - 93x66mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes or technical clarifications, please contact us via email.
For custom quotes or technical clarifications, please contact us via email.
Optical Versatility
This large, oval-shaped dielectric mirror is a highly specialized optical component that offers dual-functionality based on the Angle of Incidence (AOI):

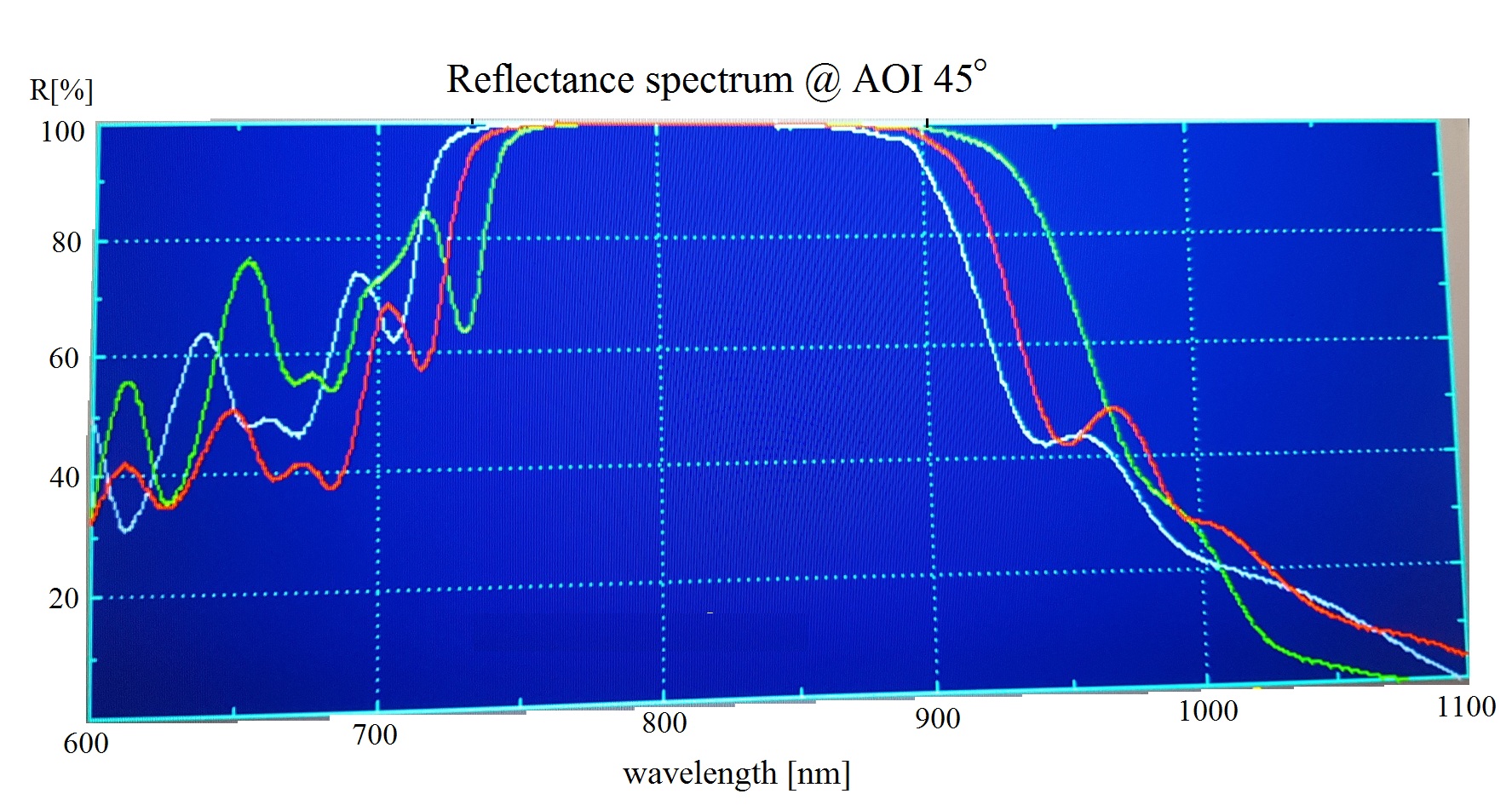

1. At 45° Incidence:
- Acts as a High Reflectivity (HR) mirror for the IR range (750 - 900 nm), with R > 99%.
- Acts as a Beam Splitter for He-Ne lasers (632.8 nm) with a Ratio R/T = 40/60.
2. At 0° (Normal) Incidence:
- Acts as a High Reflectivity (HR) mirror for 840 - 1060 nm.
The mirror features a multi-layer dielectric coating and a precision oval shape with a professional mounting bevel, making it ideal for large-aperture IR applications or beam steering setups.
Technical Specifications
| Dimensions | 93 x 66 mm |
| Shape | Oval (with bevel) |
| Coating Type | Multi-layer Dielectric |
| HR Range (45°) | 750 – 900 nm |
| HR Range (0°) | 840 – 1060 nm |
| Beam Splitter (45°) | He-Ne (632.8 nm) |
| R/T Ratio @He-Ne | 40 / 60 |
| Reflectivity (HR) | > 99% |
