HR Mirror R ~ 99.9% @ [600 - 750] nm He-Ne / Ruby / Red diode lasers Φ25 × 5mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description

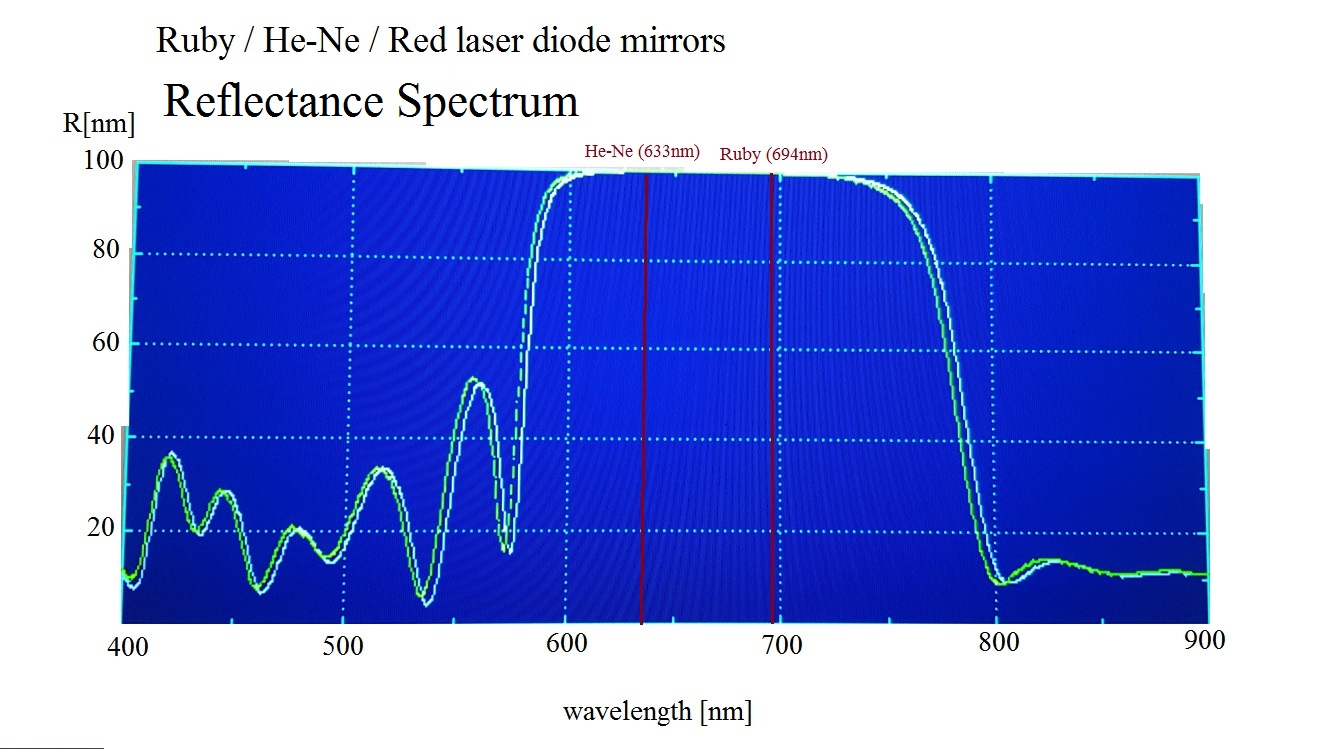

Professional High Reflectivity (HR) mirror featuring a broadband dielectric coating optimized for the 600 - 750 nm spectral range. This wide bandwidth makes it an exceptionally versatile component for various visible red laser sources.
Primary Applications:
- Laser resonators and optical cavities (He-Ne, Ruby, Red diode lasers)
- Beam steering and alignment systems
- Optical experiments and laboratory setups
- Interferometry and precision metrology
- Optical benches and prototyping assemblies
The mirror is fabricated on a high-quality Schott BK7 substrate with the second face optically polished to laser-grade standards.
Technical Specifications
| Spectral Range | 600 - 750 nm (Broadband) |
| Reflectivity | R ~ 99.9% (avg) |
| Diameter | 25 mm |
| Thickness | 5 mm |
| Substrate | BK7 - Schott optical glass |
| Second Face | Optically grade polished |
| Geometry | Flat / Plano |
| Coating Type | Dielectric PVD |
