Specialized beam-splitter cube designed for experiments and niche applications involving HeNe and Ruby lasers.

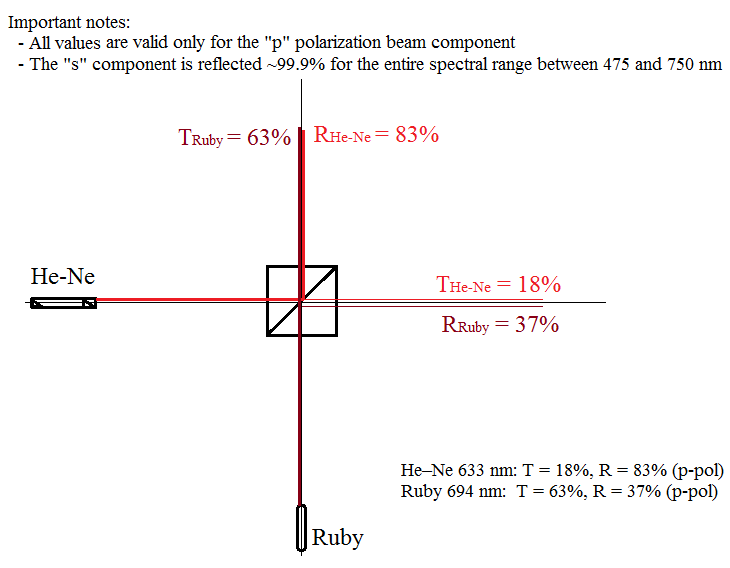

This optical component can function as both a beam combiner and beam splitter, specifically engineered to work with the characteristic wavelengths of HeNe (632.8 nm) and Ruby (694.3 nm) lasers.

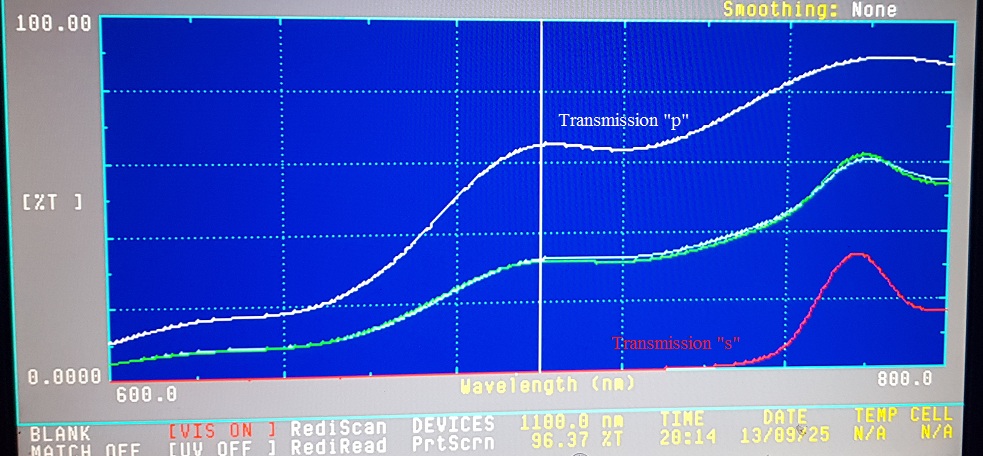

The cube exhibits a strong polarizing effect, which can be utilized in experiments requiring polarization control or analysis. The transmission characteristics for S and P polarization are detailed in the provided graph.
Featuring a fully dielectric optical coating with near-zero absorption, this component ensures minimal energy loss and avoids thermal effects that could occur with absorbing coatings.
A practical ridge is glued on the top side of the cube to facilitate easier handling and positioning during experimental setups.
This beam combiner/splitter is ideal for educational demonstrations, research experiments, and specialized applications where combining or separating beams from these specific laser types is required.
| Product Code: | cs001 |
| Designed for Lasers: | HeNe (632.8 nm) and Ruby (694.3 nm) |
| Cube Size: | 20 mm |
| Coating Type: | Total Dielectric |
| Absorption: | ~0% |
| Polarization Effect: | Strong (see transmission graph) |
| Special Feature: | Handling ridge on top side |
| Primary Function: | Beam combining/splitting |
| Substrate Material: | Optical Glass |
| Surface Quality: | 20-10 Scratch-Dig |
