Nd:YAG Resonant Cavity OC Mirrors: R~70% - 2 Concave + 1 Flat (+ BONUS HR)
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description
High-quality set of 3 resonant cavity mirrors (optical couplers) specifically designed for Nd:YAG laser systems operating at 1064nm.

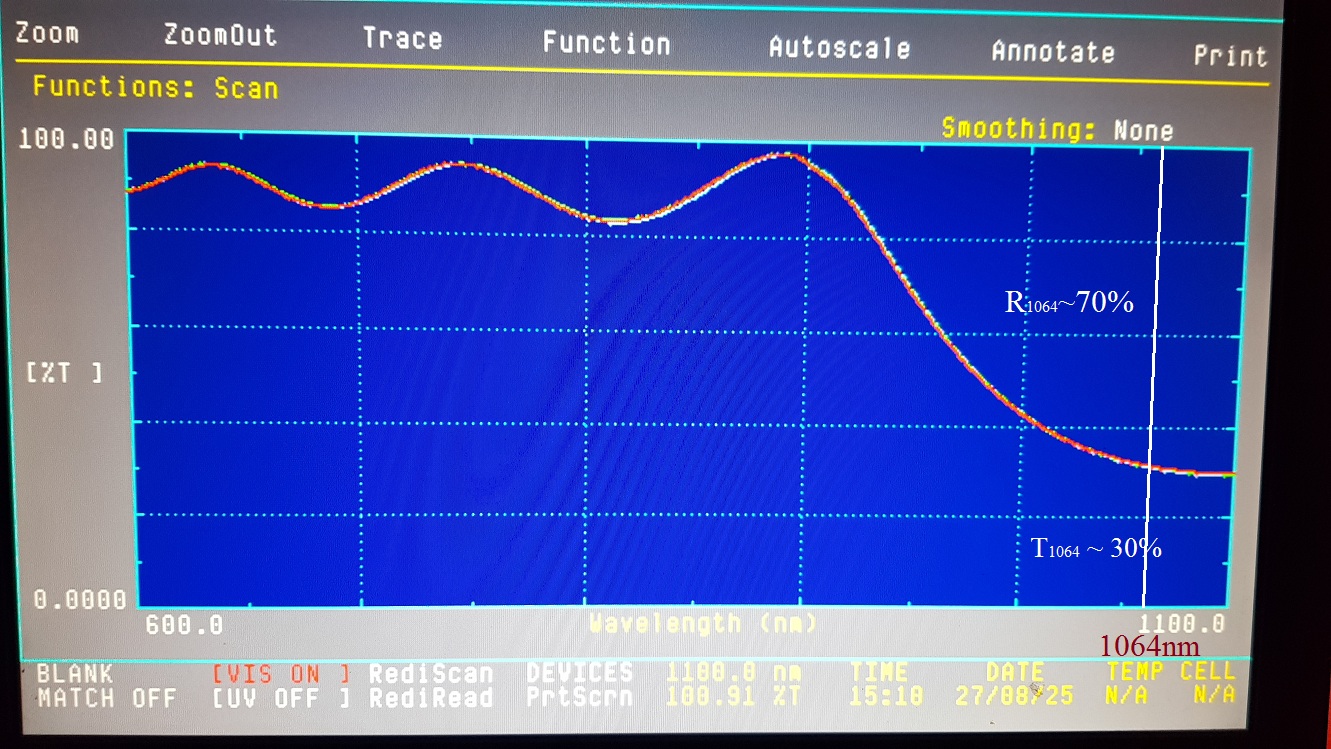

This precision optical set includes two mirrors with concave reflective surfaces and one mirror with a flat reflective surface, all featuring approximately 70% reflectivity at 1064nm wavelength.
The mirrors are manufactured with total dielectric coatings, ensuring optimal performance and durability. Each mirror has an anti-reflection (AR) coating on the second surface to minimize unwanted reflections and maximize laser efficiency.

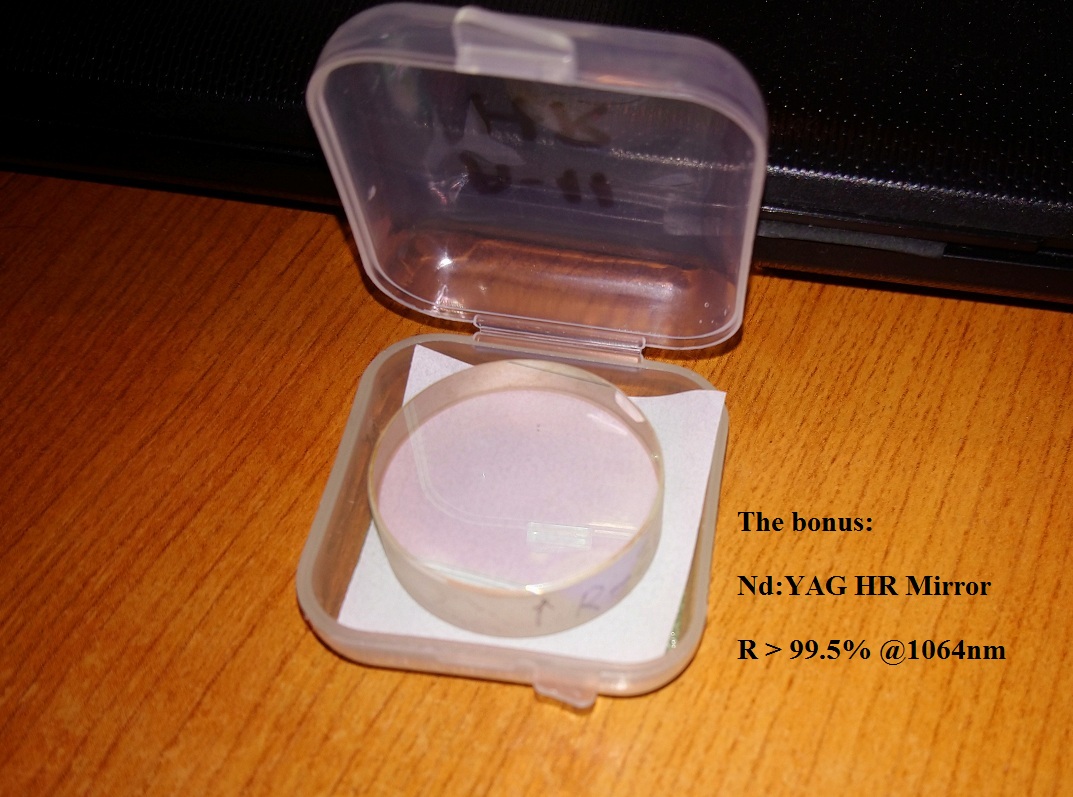

The concave mirrors feature different radii of curvature (1.1m and 2.5m) to provide flexibility in resonator design. Includes an HR Mirror as a BONUS.
Technical Specifications
| Product Code | A-11 |
| Wavelength | 1064 nm (Nd:YAG) |
| Reflectivity | ~ 70% |
| Configuration | 2 Concave + 1 Flat |
| Concave Radius 1 | 1.1 m |
| Concave Radius 2 | 2.5 m |
| Flat Radius | Infinite |
| Diameter | 25 mm |
| Thickness | 10 mm |
| Coating Type | Total Dielectric (PVD) |
| Second Surface | AR Coated |
