Set of two mirrors for Nd:YAG end-pumping through OC (folding scheme) D = 25mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description

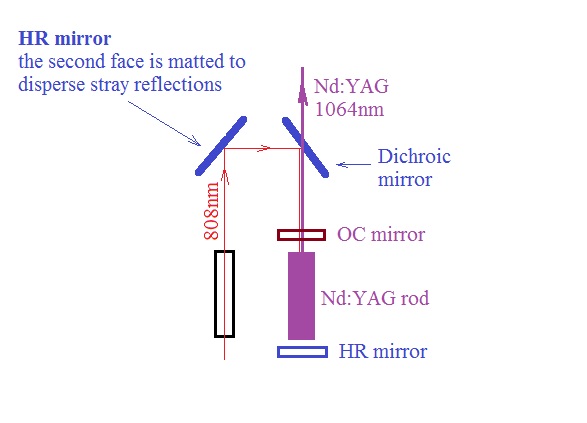

Set of two mirrors for Nd:YAG end-pumping (folding scheme) D = 25mm.

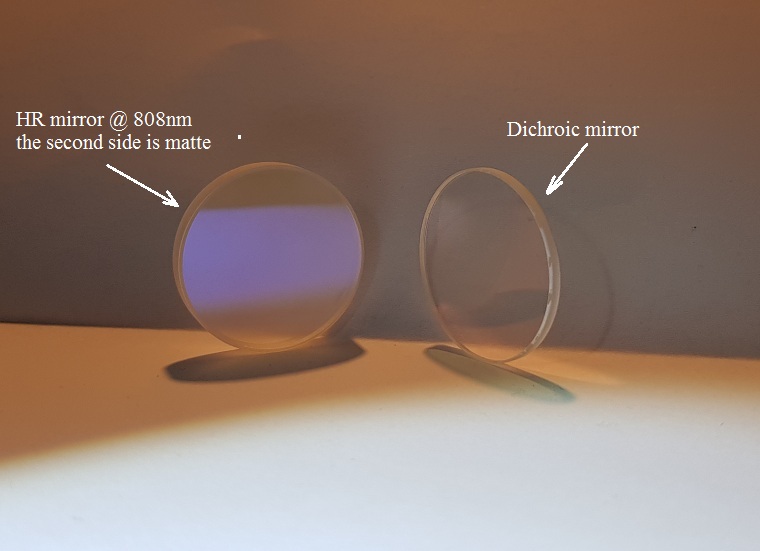

HR Mirror:
- R > 99.5% @ 808 nm
- Second side matte in order to scatter the light from stray reflections

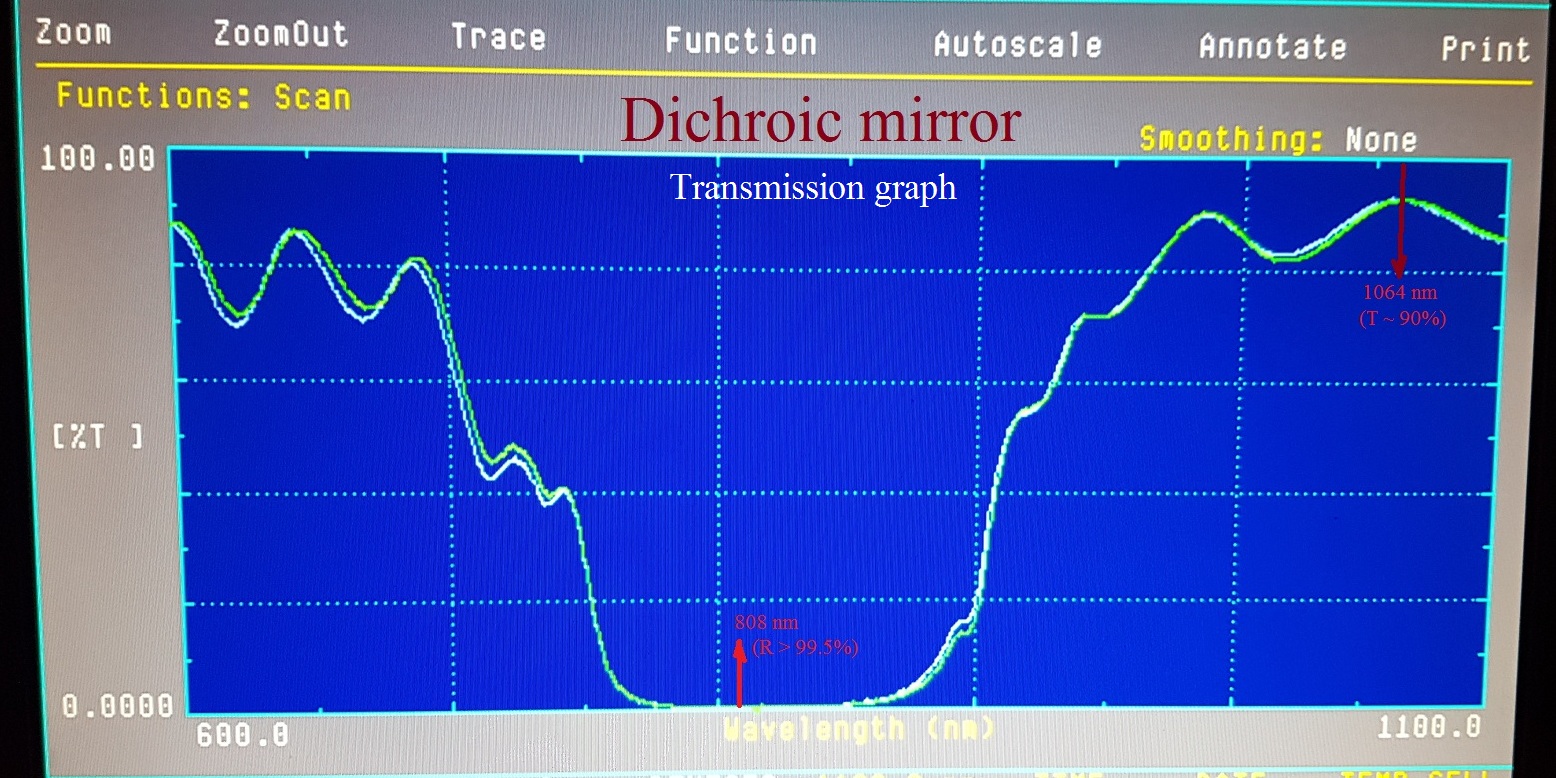

Dichroic Mirror:
- R > 99.5% @ 808 nm
- T ~ 90% @ 1064 nm
Note: If you need the complete set, including the HR & OC mirrors of the resonant cavity, just browse our general stock.
Technical Specifications
| Wavelengths | 808 nm / 1064 nm |
| Diameter | 25 mm |
| HR Mirror Reflectivity | R > 99.5% @ 808 nm |
| Dichroic Specifications | R > 99.5% @ 808 nm T ~ 90% @ 1064 nm |
| Coating | Dielectric PVD |
