Set of 4 Nd:YAG Resonant Cavity Mirrors: HR + R54% + R80% + R90% Φ12mm
Secure payment processed via PayPal. Purchase protection included.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
For custom quotes, bank transfers or any clarification do not hesitate to contact us via email.
Product Description
Set of 4 Nd:YAG Resonant Cavity Mirrors: HR + OC1 - R54% + OC2 - R80% + OC3 - R90%
1x HR (High Reflector): R > 99.5% @ 1064nm
3x OC (Output Couplers) with the next reflectivities:

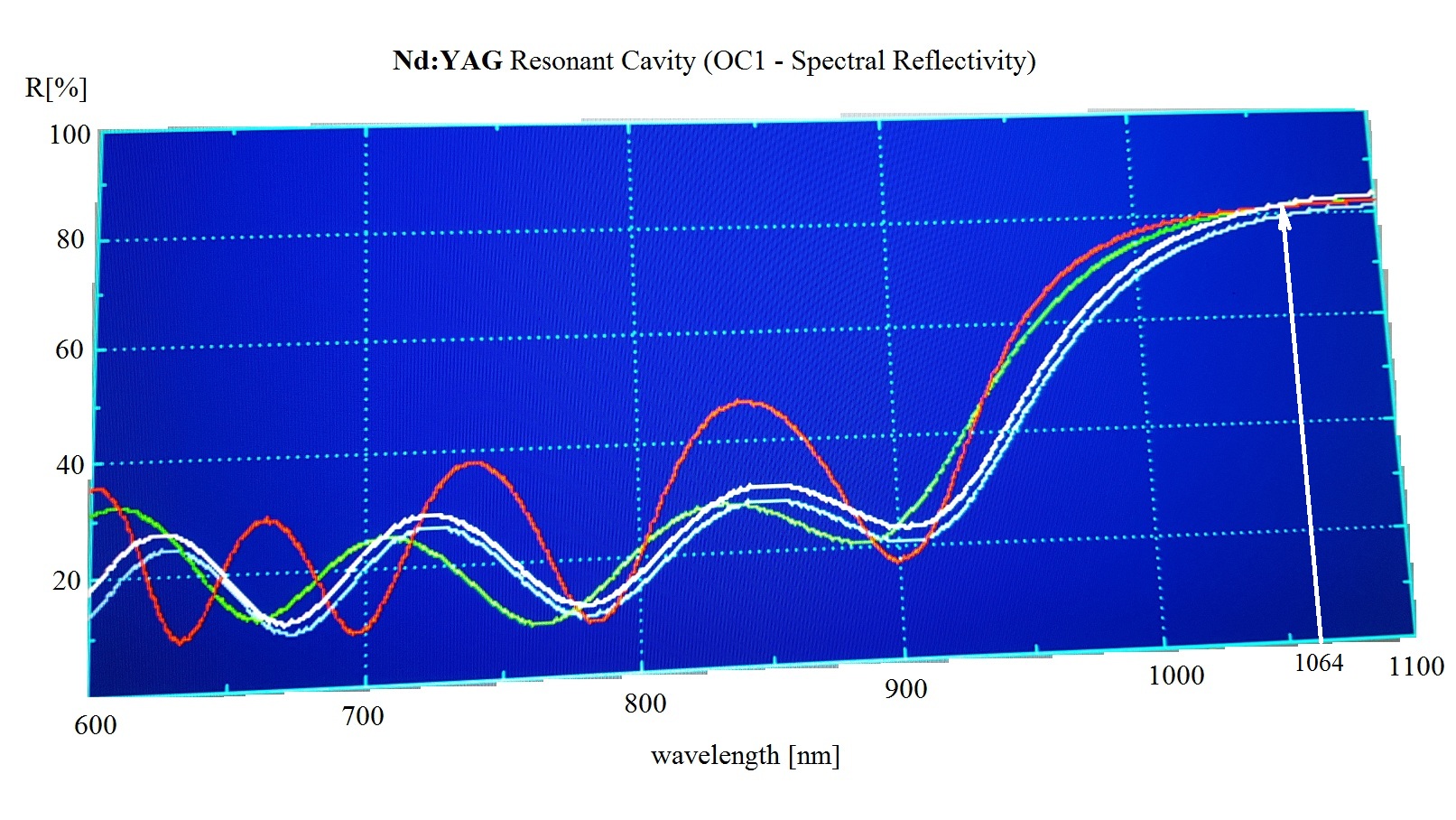

- OC1 (R1 ~ 54% @ 1064nm);
- OC2 (R2 ~ 80% @ 1064nm);

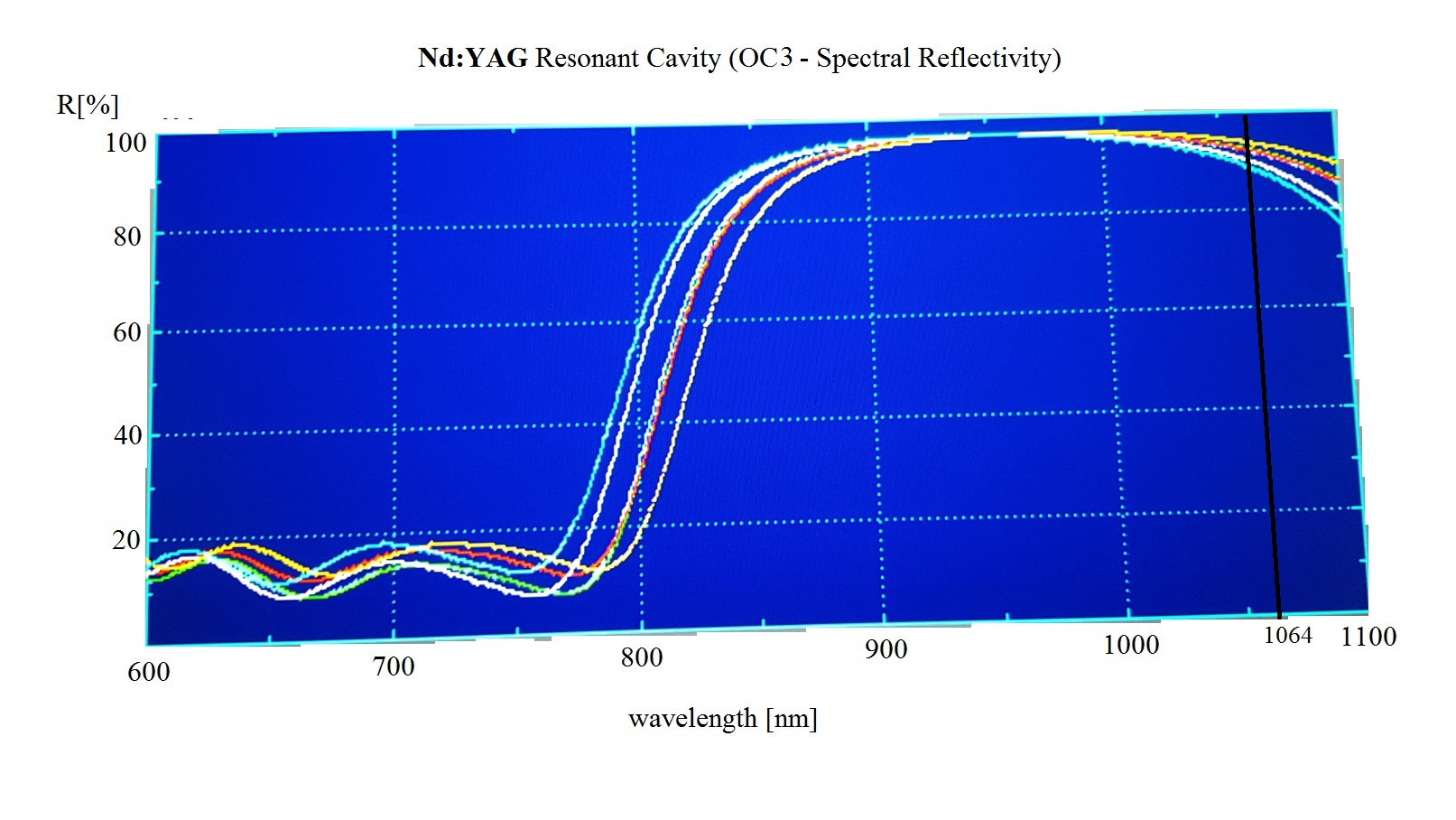

- OC3 (R3 ~ 90% @ 1064nm)
These optics are suitable for experimenting with different output coupling efficiencies in Nd:YAG solid-state laser cavities and similar.
For more unique optical pieces, simply browse the general catalog.
Feel free to contact us for custom optical coatings.
Technical Specifications
| Wavelength | 1064 nm |
| Diameter | 12 mm |
| Substrate | BK7 |
| OC's back surface | AR coated |
